Jet Engine-You can easily Built

Jet Engine construction Plan

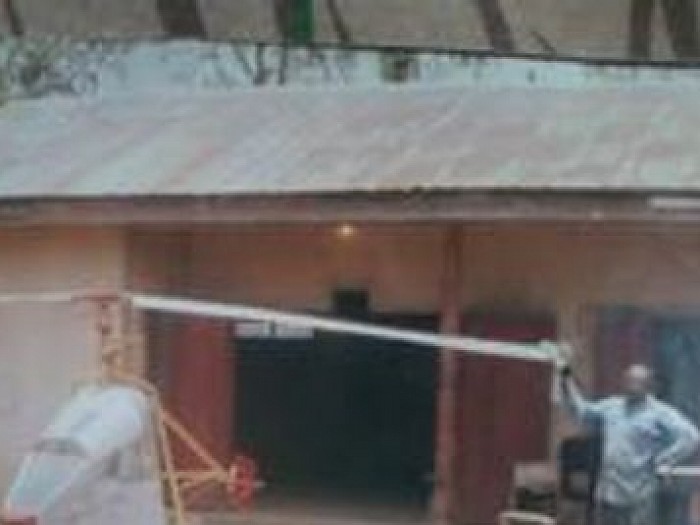

Amazing small Jet engine. This jet engine is a combinations of Ram-jet and Pulse-jet engines. It is a butane powered Jet engine you can use for small airplane, jet helicopters and other projects. Follow the simple step by step instruction on the construction plan, and within weeks you have your completed jet engine for your projects. Simple available materials are readily available to easily assembly this jet engine. See the Jet Engine mounted at the tip of rotor blade of the Jet helicopter  in the picture below, Mounted also on Jet engine test stand (Audio-Visual Device) to study the operations, thermodynamics and principles of the jet engines.







125 Pounds of Trust. Butane powered Jet Engine.

125 Pounds of Trust. Butane powered Jet Engine.

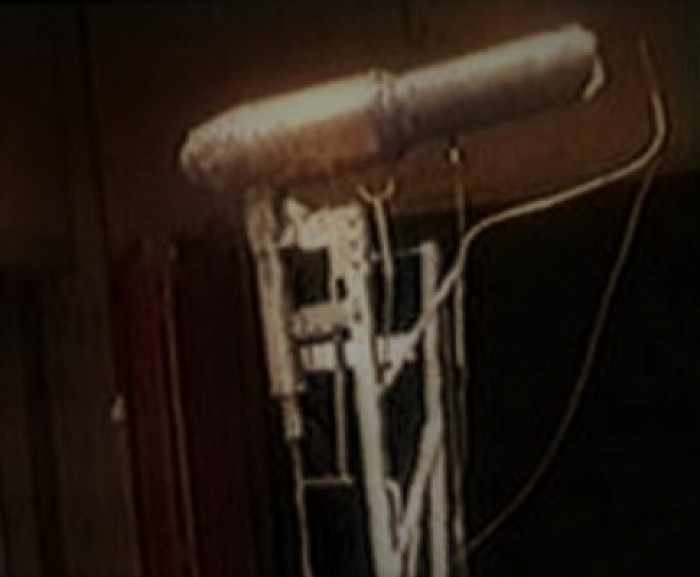

Butane powered Jet Engine

At night the Jet engine glows orange red. And operating above 2000° farenheit. In day time the glow is not visible. Engine is air cooled. Built of composite materials to withstand high temperature. Takes let's fuel and more air when dynamic.

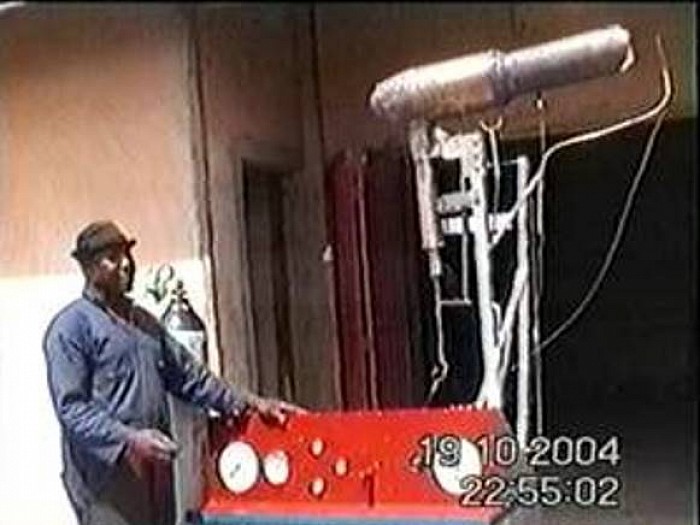

TESTING AND CALIBRATING BUTANE FUELLED JET ENGINE.

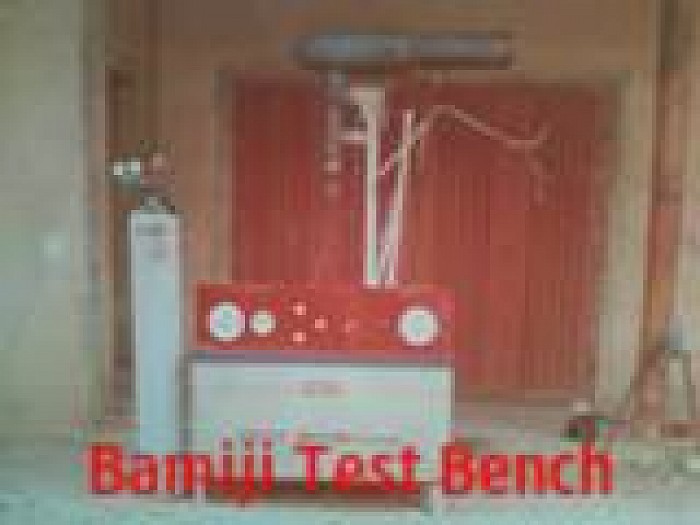

The ground test stand serves as an advanced audio-visual device designed to study and analyze the performance of the jet engine mounted on it. It allows for precise calibration of critical parameters such as nozzle pressure, fuel-air ratio, fuel consumption, air intake, engine pressure, and combustion chamber pressure. Additionally, it facilitates the tuning of the tailpipe resonance and the measurement of enthalpy, thermodynamics of the fuel exhaust, pressure, and thrust, providing comprehensive insights into engine operation.

During nighttime testing, the jet engine's outer shell emits a striking orange-red glow, indicating it is operating at temperatures around 2000 °Fahrenheit. This visual cue helps monitor the engine's thermal state in real time.

Moreover, the ground test stand is instrumental in diagnosing and correcting any operational abnormalities in the jet engine, ensuring optimal performance and safety. Both the jet engine and the ground test stand were meticulously designed and built by Regnault Bamiji, reflecting a high level of engineering expertise and innovation.

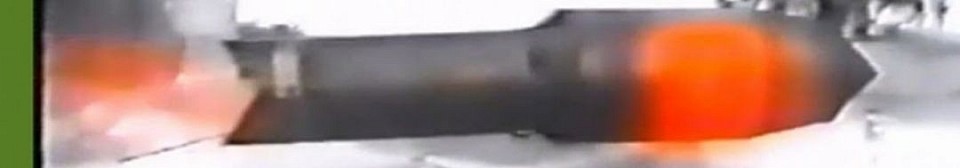

Jet Engine at Night operation

Jet Engine at Night operation

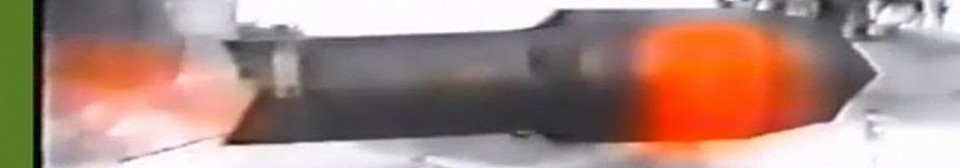

JET ENGINE IN NIGHT OPERATIONAL

Observe the Shell glowing yellow red at Night. And operating at 2000 degrees Fahrenheit.
